Cuno BEV145 Filter System For Cold Beverages

Cuno 56162-02 | Our#: 173527

Cuno (Aqua-Pure) BEV145 Filter System For Cold Beverages 56162-02

Aqua-PureŽ Models BEV140 and BEV145 single-cartridge water filtration
systems assure the taste, appearance, and consistency of your
beverages at flow rates to 2.1 gpm (7.9 lpm).


  • Purified water for consistent high-quality beverages and continued
    customer satisfaction.
  • Revolutionary IMPACTechnologyT dual-zone media cartridge
    construction combines a membrane in series with premium
    activated carbon to provide unsurpassed throughput and cartridge life.
  • Cartridge Life Warranted*.
  • NSF Standard 42 and/or FDA CFR-21 compliance provides
    assurance of safety.
  • The removal of sediment and abrasive hard particles prevents wear and
    extends the life of pumps, valves, o-rings, and seals.
  • Patented** valve-in-head design simultaneously shuts off and vents
    water, allowing for simple and trouble-free cartridge change-outs without
    the need to shut off the upstream feed water.
  • The SQCT - Sanitary Quick Change - encapsulated cartridge design
    allows for FAST and easy cartridge change-outs with a 1/4 turn while
    minimizing the possibility of leakage and contamination.
  • 3/8" FNPT horizontal inlet and outlet ports allow direct or easily
    adaptable connections to existing plumbing lines.
  • Exhausted cartridges may be incinerated for environmentally
    conscious disposal.

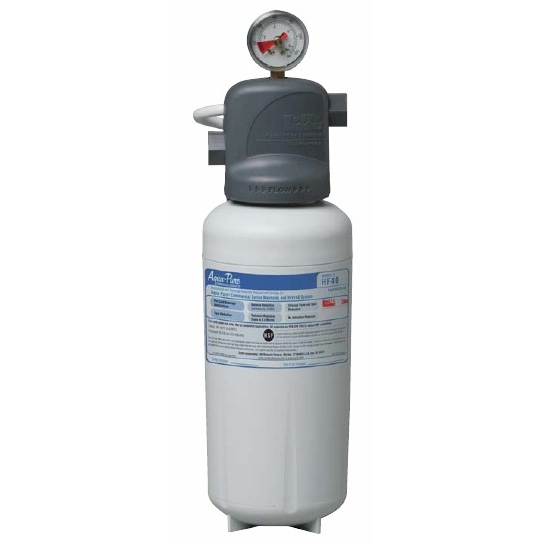

  • System includes a head assembly with integral mounting bracket,
    pressure gauge, and a single cartridge filter.
  • Inlet and outlet plumbing connections are 3/8" FNPT.
  • System incorporates an internal automatic 1/4 turn shutoff valve.
  • Filter cartridges are double o-ring seal type.
  • System maximum operating pressure of 125 psi (862 kPa)
    and operating temperature of 100°F (38°C).
  • Recommended service flow rate is up to 2.1 gpm (7.9 lpm).
  • Filter cartridges incorporate carbon block filtration medium.
  • System is NSF Standard 42 and/or CFR-21 compliant.
  • Cartridge body is constructed from high-impact polypropylene.
  • Cartridges are sanitary in design, requiring no contact with the filter
    media during cartridge change-out.
  • Filter cartridges require no pre-activation.

CUNO Incorporated recommends regularly scheduled maintenance and
replacement of the filter cartridge(s) in order for the product to perform
as advertised/sold. Change the filter cartridge at least every 6 months.
CUNO shall not be liable for system failures due to improper maintenance.
