Cuno BREW105-MS Filter System For Brewers

Cuno 62138-01 | Our#: 173508

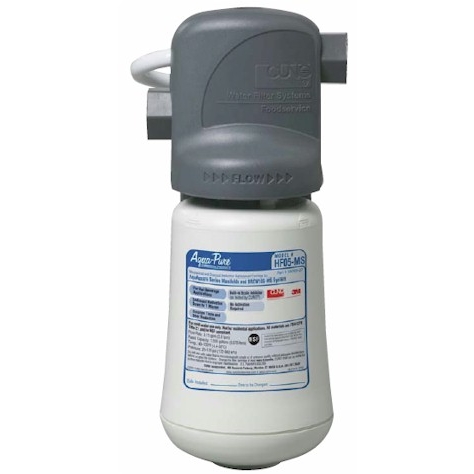

Cuno BREW105-MS Filter System For Brewers

Aqua-PureŽ BREW105-MS single-cartridge water-filtration systems
assure consistent high-quality water for the perfect cup of coffee or tea
by reducing the harmful effects of sediment and chlorine at flow rates to
0.75 gpm (2.8 lpm). A proprietary slow-release scale inhibitor reduces
the ability of calcium and magnesium to form on the heating coils and
cause downtime and unscheduled service maintenance.


  • Consistent great-tasting brewed coffee and tea from water with
    reduced sediment and chlorine taste and odor.
  • Equipment protection from reduced sediment particles that can clog
    the spray head.
  • Reduced scale formation by the controlled release of proprietary
  • Patented* valve-in-head design simultaneously shuts off and vents
    water with 1/4 turn, allowing for simple and trouble-free cartridge
  • SQCT - Sanitary Quick Change - encapsulated cartridge design
    allows for fast and easy change-outs with a 1/4 turn while minimizing
    the possibility of leakage and contamination.
  • NSF Standard 42 and/or FDA CFR-21 compliance provides assurance
    of safety.
  • 3/8" FNPT horizontal inlet and outlet ports allow direct or easily
    adaptable connections to existing plumbing lines.
  • Optional pressure gauge allows monitoring of downstream water
  • Exhausted cartridges may be incinerated for environmentally
    conscious disposal.


  • System includes a head assembly, integral mounting bracket, and single
    cartridge filter.
  • Optional downstream pressure gauge port in top of head assembly.
  • Inlet and outlet plumbing connections are 3/8" FNPT.
  • System incorporates an internal automatic 1/4 turn shutoff valve.
  • Filter cartridge is double o-ring seal type.
  • System maximum operating pressure is 125 psi (862 kPa) and
    operating temperature 100°F (38 °C).
  • Recommended maximum service flow rate is 0.75 gpm (2.8 lpm).
  • Filter cartridge incorporates carbon block media and a scale inhibitor.
  • System is NSF Standard 42 and/or CFR-21 compliant.
  • Cartridge body is constructed from high-impact polypropylene.
  • Cartridges are sanitary in design, requiring no contact with the filter
    media during cartridge change-out.
  • Filter cartridges require no pre-activation.

CUNO Incorporated recommends regularly scheduled maintenance and
replacement of the filter cartridge(s) in order for the product to perform
as advertised/sold. Change the filter cartridge at least every 6 months.
CUNO shall not be liable for system failures due to improper maintenance.
