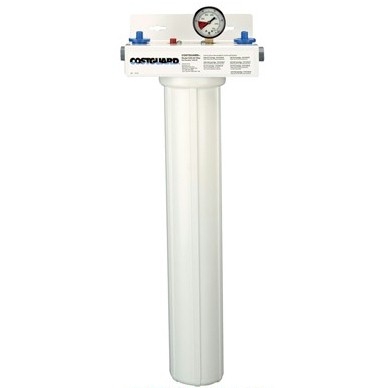

CGS-20 Single 20" Slim Line System

CGS-20 SYSTEM 9100-20. Does not include filter. Please see below for appropriate filter selection.

Features

• 20" low profile Slim Line single bowl housing
• Manufactured of durable polypropylene and has excellent chemical resistance
• System includes water pressure gauge
• Equipped with a pressure relief button to relieve water pressure during cartridge changes
• Includes wall mounting bracket and hardware for fast and easy installation
• System is shipped fully assembled
• Choose the appropriate cartridge for your needs
• Cartridge sold separately

Installation Tips

• Choose a mounting location suitable to support the full weight of the system when operating
• Install vertically so bowl hangs down
• Allow 2-1/2" clearance below the cartridge for easy cartridge replacement
• Make sure O-ring on bowl is sufficiently lubricated
• Always screw on bowls by hand; do not use a housing wrench
• Flush filter by running water through filter according to cartridge instructions

Operation Tips

• Change cartridges on a regular 6 month preventative maintenance program
• Change cartridges when capacity is reached or when pressure decreases
• Always inspect O-ring; change and/or lubricate
• if necessary
• Clean bowl with mild solution of detergent before inserting new cartridge
• Always flush the filter cartridge at time of installation and cartridge change

Application/Sizing

For foodservice applications

Bowl housing assembly accepts drop in cartridges

Capacity: varies according to filter cartridge used

Specifications

Overall Dimensions: 25"H x 9.25"W x 5.25"D

Inlet connection: 3/8"

Outlet connection: 3/8"

Service Flow Rate: Maximum 2.0 gpm (7.6 Lpm)

Pressure Requirements: 30 - 125 psi (2.1 - 8.6 bar), non-shock

Temperature: 40 - 100°F (4.4 - 38°C)

No electrical connection required
