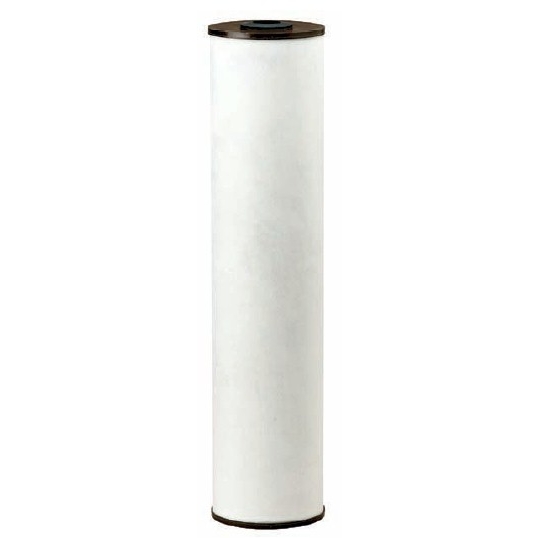

SO-204 CARTRIDGE

Everpure DEV910545 | Our#: 111725

$84.95

(Regular $95.80, You Save $10.85)
Ships In 1-2 Days
Volume Pricing You Save
1 $84.95 ea.
2 - 5 $80.70 ea. $4.25 ea. (5%)
6 - 11 $76.46 ea. $8.50 ea. (10%)
12+ $72.21 ea. $12.74 ea. (15%)

SO-204 CARTRIDGE 9105-45

Features

  • 20" large capacity softening system for espresso machines reduces scale-forming minerals like calcium and magnesium
  • Reduces scale forming minerals by ion exchange
  • May be used on water having up to 30 grains per gallon (500 mg/L) hardness
  • Useful where full size water conditioners are impractical
  • Includes mounting bracket, pressure relief valve and filter wrench
  • Recommended to be used in conjunction with an Everpure filtration system



Installation Tips

  • Choose a mounting location suitable to support the full weight of the system when operating
  • Use 1" water line
  • Install vertically with bowl hanging down
  • Allow 2-1/2" clearance below the cartridge for easy cartridge replacement
  • Flush cartridges by running water through for one minute at full flow
  • Make sure O-ring on bowl is sufficiently lubricated
  • Always screw on bowls by hand; Do not use a housing wrench



Operation Tips

  • Change cartridges on a regular 6 month preventative maintenance program
  • Change cartridges when hardness of treated water increases to more than 3 gpg
  • Service flow rate must not exceed 2.0 gpm
  • Always flush the cartridge at time of installation and cartridge change
  • To determine cartridge life, divide total capacity of cartidge (4,400 grains) by the hardness in grains per gallon (gpg) or milligrams per liter (ppm), respectively



Application/Sizing

For commercial espresso, specialty coffee and ice tea machines

4,500 grain softening capacity

Divide cartidge grain capacity by grains per gallon in influent water to calculate total gallons product water





Specifications

Overall Dimensions: 26"H x 5.125"W x 5.25"D

Inlet connection: 1"

Outlet connection: 1"

Service Flow Rate: Maximum 2.0 gpm (7.6 Lpm)

Pressure Requirements: 10 - 125 psi (0.7 - 8.6 bar), non-shock

Temperature: 35 - 100F (2 - 38C)

No electrical connection required

Shipping Weight:  21 lbs.



Specifications

Application20" Big Bowl Drop-in Housings
Capacity4,500 grains
Dimensions (Diameter x Height)4.5" x 20"
Flow Rate2.0 gpm
Micron RatingN/A
Model NumberSO-204
Part NumberDEV9105-45
Reduction ClaimsScale, Hardness
