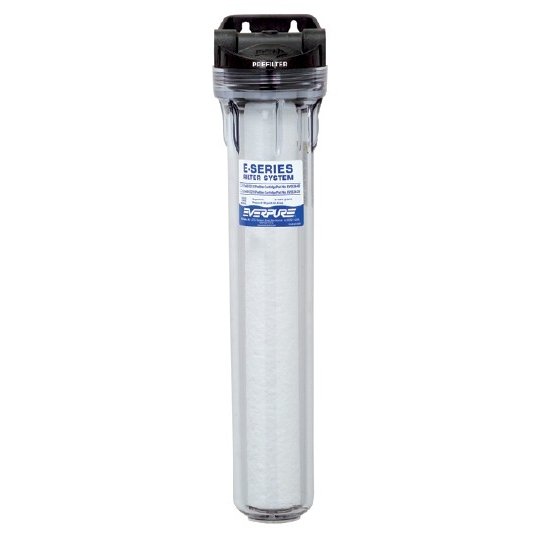

E20 PREFILTER 20" W/EC210

E20 PREFILTER 20" W/EC210 9795-90

Features

Filters out larger dirt and rust particles

Extends the life of primary filter cartridges

Tightly spun EC210 sediment cartridge delivers

10 micron nominal filtration

Durable slim bowl design makes cartridge change outs easy to handle

Clear housing lets you visually inspect trapped particles and makes determining when to change the cartridge easy

20" bowl design accepts most 10" drop in cartridges

Installation Tips

Choose a mounting location suitable to support the full weight of the system when operating

Make sure to properly lubricate O-ring prior to use

Use 3/4" water line (Optional reducer bushings included)

Install vertically with bowl hanging down

Allow 2-1/2" clearance below the cartridge for easy cartridge replacement

Operation Tips

Inspect EC210 cartridge periodically to determine dirt load

Replace EC210 cartridge when dirt has penetrated through to the inner core of the cartridge

Do not exceed service flow rate

Inspect O-ring during each cartridge change.

Lubricate and/or replace if necessary

Application/Sizing

For all foodservice applications requiring pre-filtration

High sediment areas

Specifications

Overall Dimensions: 22.44"H x 5.16"W x 5.5"D

Inlet connection: 3/4"

Outlet connection: 3/4"

Service Flow Rate: Maximum 6.0 gpm (22.7 Lpm)

Pressure Requirements: 10 - 125 psi (0.7 - 8.6 bar), non-shock

Temperature: 35 - 100°F (2 - 38°C)

No electrical connection required

Shipping Weight:  6 lbs.

Operating Weight:  8 lbs.
