MODEL CT KLEENSTEAM

Everpure EV979750 | Our#: 111959

$505.00

(Regular $633.00, You Save $128.00)
In Stock

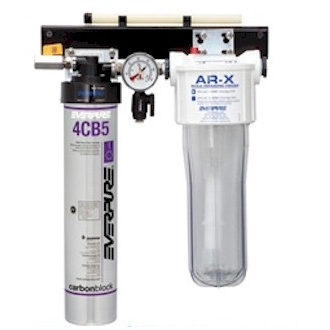

MODEL CT KLEENSTEAM (9797-50)

Features

  • A total system delivering high quality filtered water with cleaning and deliming capabilities
  • Sophisticated Hydroblend compound prevents limescale formation in high temperature steam applications
  • Fine filters incoming water to improve the performance, maximize energy efficiency and increase the life of steam equipment
  • Reduces chlorine-induced corrosion
  • System is simple to install, operate and maintain
  • Easy deliming with Everpure's ScaleKleen, which is fed directly into the boiler through the SR-X bowl without boiler disassembly or the use of dangerous acids
  • Longer lasting SS-10 cartridge is more effective in higher alkalinity/hardness/TDS/temperature installations.
  • Scalestick is NSF Certified under NSF/ANSI
  • Standard 42 for material requirements only

 Installation Tips

  • Choose a mounting location suitable to support the full weight of the system when operating
  • Use 3/8" water line
  • Connect the system to the boiler water only! Do not connect to the condenser!
  • Install vertically with cartridges hanging down
  • Allow 2-1/2" clearance below the cartridge for easy cartridge replacement
  • Flush cartridges by running water through filter for five minutes at full flow

 Operation Tips

  • Change 4CB5 cartridge on a regular 6 month preventative maintenance program
  • Change SS-10 cartridge before HydroblendT compound is completely used up
  • Change cartridges when capacity is reached or when pressure falls below 10 psi
  • Service flow rate must not exceed 1.67 gpm
  • Always flush the filter cartridge at time of installation and cartridge change

 Application/Sizing

For commercial steam applications

For use with countertop steamers



Specifications

Overall Dimensions: 18.75"H x 15"W x 7"D

Inlet connection: 3/8"

Outlet connection: 3/8"

Service Flow Rate: Maximum 1.67 gpm (6.3 Lpm)

Pressure Requirements: 10 psi -125 psi (0.7 - 8.6 bar), non-shock

Maximum water temperature at inlet: 80F (27C)

Alkalinity range: 2 to 12 grains per gallon

No electrical connection required

Shipping Weight: 15 lbs.

Operating Weight: 18 lbs.
