WaterFilterExperts.com > 4-Stage Premium Reverse Osmosis System

4-Stage Premium Reverse Osmosis System

FSHS Inc. PC-438 | Our#: 175608


Filter TypeStandard 10" and Inline Granular Activated Carbon
Holding Tank Dimensions14.5" H X 11" Dia.
Inlet Tubing Size1/4" OD
Membrane TypeThin Film Composite
Outlet Tubing Size3/8" OD
Production Capacity50 GPD
System Dimensions14" Wide X 18" Tall X 6" Deep
Tank Holding Capacity4 Gallons
WarrantyOne Year Limited

4-Stage Premium Reverse Osmosis System

Click here to see RO System faucet options

Once you install and use an "RO" system for drinking and cooking water - you'll wonder how you ever lived without one!  Use RO water to make terrific tasting drinking water, ice cubes and coffee.  RO water is also great for cooking. This R.O. System has an integrated Automatic Shut Off valve.  This ASO allows the R.O. unit to automatically stop producing water once the holding tank becomes full of purified water.

This residential Reverse Osmosis Drinking System by FSHS Inc. features high quality components and high performance at a low price. These R.O. Systems  are completely assembled  and are ready for installation.  This Reverse Osmosis Drinking Water System comes complete with everything you need to install it yourself and includes NSF approved components.   Quick disconnect fittings means you don't need any special plumbing skills to get your system up and running. The system is suited for private well water or chlorinated city water capability.

This is a 4 stage drinking water system. The 4 stages are comprised of:

( 1 ) 5 micron Sediment Pre Filter
( 2 ) Split Sediment / Carbon Block Pre Filter
( 3 ) TFC Membrane
( 4 ) Granular Activated Carbon "Bullet" Post Filter

This system is easy to install !

The 4 Stage R.O. includes color coded tubing and all necessary installation materials, including instructions.

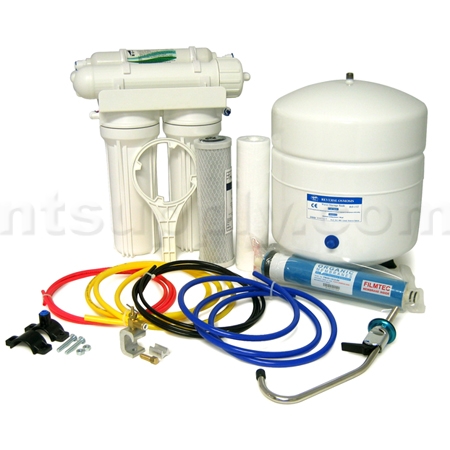

4 Stage R.O. System includes:

  • Integrated System Mounting Bracket
  • Automatic Shut Off ( ASO )
  • 50 GPD TFC Membrane
  • 10" 5 micron Sediment Pre Filter
  • 10" Split Sediment / Carbon Block Pre Filter
  • Granular Activated Carbon "Bullet" Post Filter
  • 4 Gallon Water Holding Tank - NSF Approved
  • Drain Saddle w/ 1/4" connection
  • Supply Water Tapping Valve
  • R.O. Faucet w/ Chrome Finish
  • Color-Coded Tubing : 1/4" RED - Feed Water, 3/8" YELLOW - Holding Tank, 1/4" BLACK - Discharge / Drain,  3/8" BLUE - R.O. Faucet
  • Spanner Wrench for filter sump removal
  • 3/8" Shut Off Valve for the Holding Tank
  • Installation instructions
