WaterFilterExperts.com > Manitowoc K-00338 AR-10000 Replacement Filter

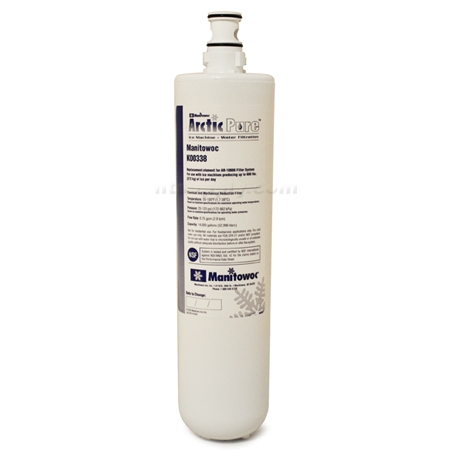

Manitowoc K-00338 AR-10000 Replacement Filter

Manitowoc K-00338 | Our#: 173887

$65.95

(Regular $86.67, You Save $20.72)
In Stock
Volume Pricing You Save
1 $65.95 ea.
2 - 5 $62.65 ea. $3.30 ea. (5%)
6 - 11 $59.36 ea. $6.60 ea. (10%)
12+ $56.06 ea. $9.89 ea. (15%)

Manitowoc K-00338 AR-10000 Replacement Filter

Over 60% of ice machine maintenance calls are water-related! Arctic PureŽ
water filters are designed exclusively for ice machine applications and will
reduce these calls.

  • Built-in scale inhibitor. Siliphos is designed into the filters to
    reduce scale build-up even under the hardest water conditions.
  • Reduces chlorine taste and odor. All filtration and scale reduction
    material is NSF and/or FDA compliant and is engineered
    to reduce chlorine taste and odor. Ice looks and tastes better.
  • Graded density carbon block filter. Provides superior dirt holding capacity
    and fine sediment reduction.
  • Sanitary quick change housing. Design minimizes contamination of
    filter media during filter cartridge change-out. All filters are provided
    with automatic shut-off and pressure relief valves.

Maximum operating pressure:
25-125 psi (1.7-8.6 bar)
Maximum operating temperature:
35°-100°F (1.7°-38°C)
Flow Rate: AR-10000 ............... 0.75 gpm (2.84 LPM)
AR-20000 ............... 0.75 gpm (2.84 LPM)
AR-40000 ................ 1.5 gpm (5.68 LPM)
Cartridge Housing Material: Talc Filled Polypropylene
Inlet/Outlet fittings - 3/8" John Guess

To insure maximum filtration efficiency, replace the primary filter cartridge every 6 months. A filter gauge
will indicate if replacement is necessary prior to six months usage (below 20 psig).

Important notice: Read this performance sheet and compare the capabilities of this unit with your
actual water treatment needs. It is recommended that you have your water supply tested to determine your
actual water treatment needs before purchasing a water treatment unit.

Warning: Do not use with water that is microbiologically unsafe or of unknown quality without
adequate disinfections before or after the unit.

Specifications

Capacity14,000 Gallons
CertificationsNSF/ANSI 42
Dimensions14-1/2" x 3-3/4" Dia.
Flow Rate0.75 gpm
Ice Machine SizingFlaker up To 1,000 Lbs, Cubers up to 600 Lbs
Micron Rating1
Reduction ClaimsSediment, Chlorine Taste & Odor, Scale
